XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press

Product Categories
Qingdao Beishun Environmental Protection Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press

  • 1
  • 2
  • 3

Plunger diameter : 180-290mm,200 mm

Heating way : Steam or oil,electrical / oil system

Year : custom,2018

Cooling time : about 5 mins,5 minutes

Vulcanizing temperature : Adjustable,145 °C

Supply Ability : 30sets/60day

Price : Negotiable

Payment Terms : T/T,L/C

Warranty : 1 Year,1 year for single vulcanizing press machine

Color : Blue,Yellow,White and others accepted,customization,orange

Application : vulcanizing to be final product,conveyor belt hot vulcanizing joint,Steel cord and multi-ply conveyor belt joint,Vulcanizing Rubber Products,Splicing and repairing conveyor belts

Name : Lab Rubber Heating Plat Vulcanizing Press Machine,Vacuum Rubber Vulcanizer Press machine,Rubber compression molding machine,Single vulcanizing press machine / PLC control

Material : Aluminum alloy

Type : Vulcanizer,Column,tablet press,PLC control,Plate vulcanizing press

After-sales service provided : Engineers available to service machinery overseas,Field maintenance and repair service,Video technical support,Overseas third-party support available,Field installation

Working layer : 1,4-6 molds,2,2-4 layers

Product name : rubber hot plate vulcanizing machine,1400x5700mm platen size rubber conveyor belt vulcanizing press,Rubber conveyor belt jointing vulcanizing press machine,Rubber vulcanizing press

Delivery Time : 40days

Packaging Details : 40GP

Power(w) : 1.5KW - 75 KW,4KW,2.2,2.2KW,36Kw

Brand Name : Beishun

Model Number : XLB-600*600

Place of Origin : Qingdao

Voltage : 220V/380V/400V/440/

Weight : according to size

Certification : ISO/CE

Condition : New

MOQ : 1set

Contact Now

The XLB-500×500 Small Double-Seat Vulcanizing Machine is an integrated two-unit hot pressing system featuring twin hydraulic cylinders for stable operation. With a platen size of 500×500 mm and two clamping force options (50-ton and 80-ton), this compact, efficient machine is ideal for compression molding and vulcanization of small rubber, silicone, and thermosetting plastic products.
Technical Specifications
Item 50 Ton Model 80 Ton Model
Model XLB-500×500×2/0.5MN XLB-500×500×2/0.8MN
Nominal Clamping Force 500 kN (50 Ton) 800 kN (80 Ton)
Platen Dimension 500×500×60 mm 500×500×60 mm
Working Station 2 stations 2 stations
Main Motor Power 2.2 kW 2.2 kW
Heating Temperature Room temperature ~ 180 °C (adjustable) Room temperature ~ 180 °C (adjustable)
Temperature Control Accuracy ±1~2 °C ±1~2 °C
Vulcanization Timer 0~99 min (adjustable) 0~99 min (adjustable)
Specific Platen Pressure Approx. 2.0 MPa Approx. 3.2 MPa
Overall Dimension Approx. 2200×1200×1700 mm Approx. 2300×1300×1750 mm
Machine Weight Approx. 3500 kg Approx. 4200 kg
Key Features & Advantages
  • Dual Independent Stations: Two working stations operate simultaneously or alternately without interference, maximizing production capacity and space utilization
  • Rigid Frame & Twin-Shaft Driving: Four-column structure with twin hydraulic cylinders ensures uniform pressure distribution and excellent platen parallelism for stable operation and long service life
  • Precision Electric Heating System: Electric heating tubes with PID intelligent temperature controller provide even heat distribution, energy efficiency, and clean operation
  • Optimized Hydraulic System: Fast lifting and lowering speeds with automatic pressure holding and compensation; manual and automatic working modes available for flexible operation
  • Complete Safety Protection: Equipped with safety guard, emergency stop button, over-temperature and overload protection devices meeting international safety standards
  • Customizable Configuration: Optional accessories include mould sliding mechanism, automatic mould opening, PLC full-automatic control with touch screen panel, and multi-layer platens
Application Range
  • Rubber & silicone sealing parts: O-rings, oil seals, gaskets
  • Silicone daily products: buttons, bracelets, kitchenware accessories
  • Rubber miscellaneous parts: rubber mats, dust covers and other molded rubber components
  • Laboratory use: formula research, sample testing and pilot production
Product Strengths
Integrated double-unit design reduces investment costs and floor space requirements
Two pressure specifications available to meet diverse production requirements
Compliant with CE & ISO standards for global market suitability
Stable performance with easy maintenance and cost-effective operation

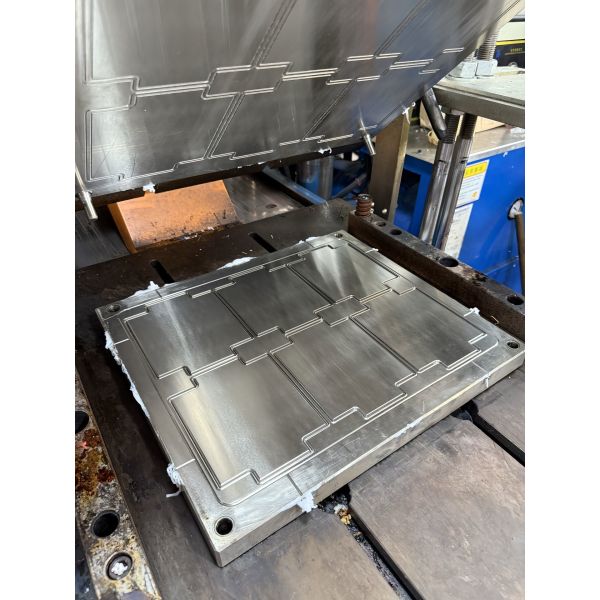

Product Images
XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press
